隔膜阀 | PDV系列(Pneumatic Type)

PDV系列定位为标准型Primet隔膜阀。
SUS316L锻造阀体（单次熔炼材料）兼容各种配件（金属密封、双卡套、对接焊）。

可提供规格型号

规格参数

Size 1/4” 3/8” 1/2”
Cv value 0.27 0.65
Max.Operating Pressure 1.0MPa(G)
Operating Temp. Range -10〜80℃
External Leakage Inboard ≦3×10-12 Pa・m3 ／sec Helium
Across Seat ≦3×10-10 Pa・m3 ／sec Helium

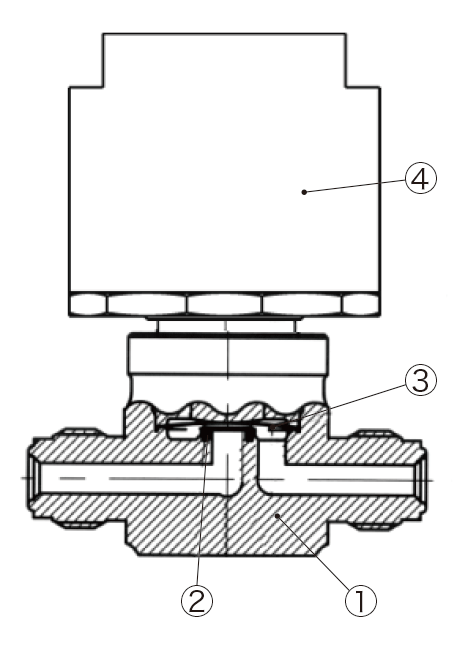

材质

Part name 材质
①Body SUS316L
②Seat PCTFE
③Diaphragm Ni-Co Alloy
④Actuator Aluminum

模型

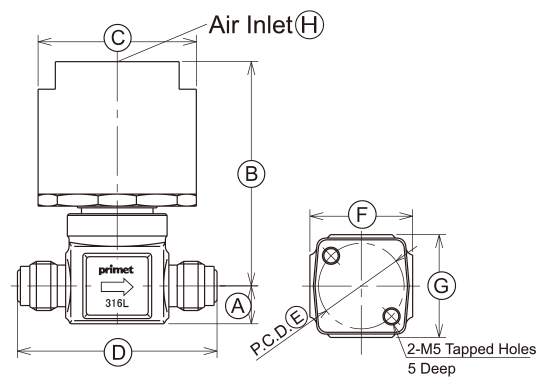

Male Metal Seal

Unit(mm)
Size A B C D E F G H
1/4″ 11 65 46 58 25 30 30 Rc1/8
1/2″ 17.5 73.5 56 76 28 37 37 Rc1/8

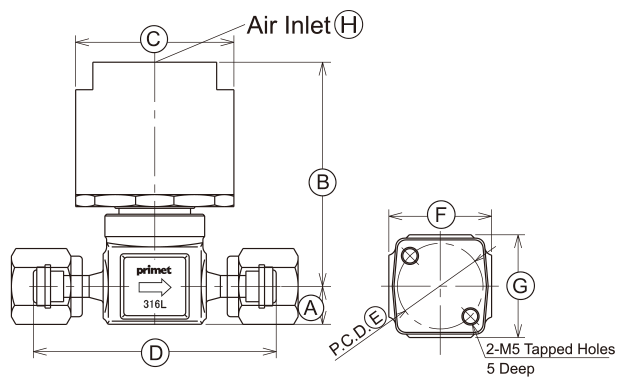

Female Metal Seal

Unit(mm)
Size A B C D E F G H
1/4″ 11 65 46 70.6 25 30 30 Rc1/8
1/2″ 17.5 73.5 56 100 28 37 37 Rc1/8

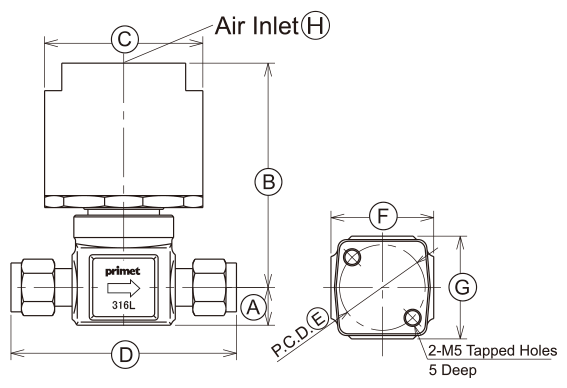

Double Ferrule

Unit(mm)
Size A B C D E F G H
1/4″ 11 65 46 (63.5) 25 30 30 Rc1/8
3/8″ 17.5 73.5 56 (79.4) 28 37 37 Rc1/8
1/2″ 17.5 73.5 56 (86) 28 37 37 Rc1/8

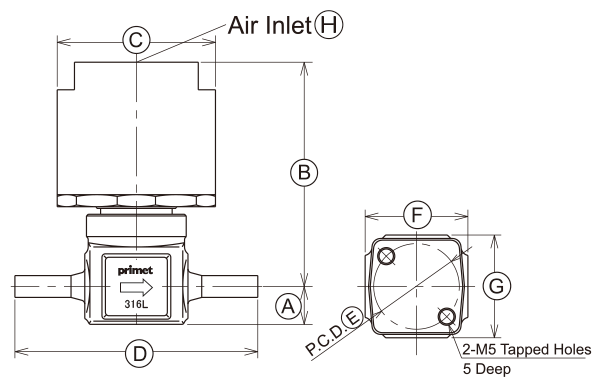

Butt Weld Long

Unit(mm)
Size A B C D E F G H
1/4″ 11 65 46 89 25 30 30 Rc1/8
3/8″ 17.5 73.5 56 105 28 37 37 Rc1/8
1/2″

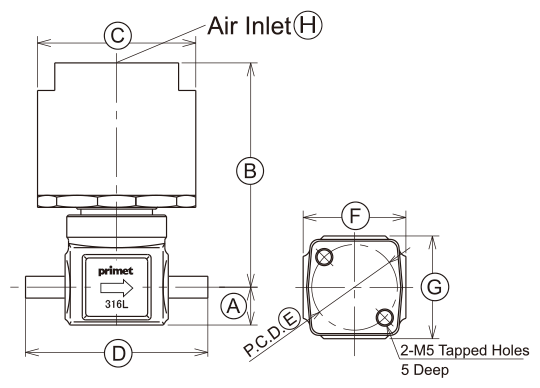

Butt Weld Short

Unit(mm)
Size A B C D E F G H
1/4″ 11 65 46 44.4 25 30 30 Rc1/8
3/8″ 17.5 73.5 56 55 28 37 37 Rc1/8
1/2″
※Specification are subjected to change without prior notice.
