Cylinder connectors | NUT

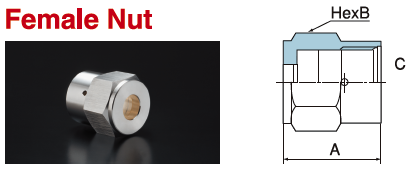

Female Nut

Unit(mm)
Part No. A Hex B C
F0830R 35.00 30.00 0.830-14NGO-RH-INT
F0830L 0.830-14NGO-LH-INT
F0908R 0.908-14NGO-RH-INT
F1035R 36.00 32.00 1.035-14NGO-RH-INT
F1035L 1.035-14NGO-LH-INT
FJS21R 35.00 30.00 W21-14-OR
FJS21L W21-14-OL
FJS22R W22-14-OR
FJS22L W22-14-OL
FJS23R W23-14-OR
FJS26R 36.00 32.00 W26-14-OR
FJS26L W26-14-OL

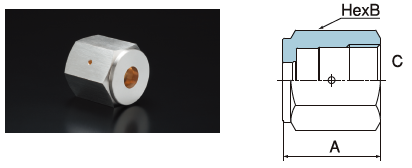

Unit(mm)
Part No. A Hex B C
SFN630 36.00 32.00 1.035-14NGO-RH-INT
SFN710 35.00 1.125-14NGO-RH-INT

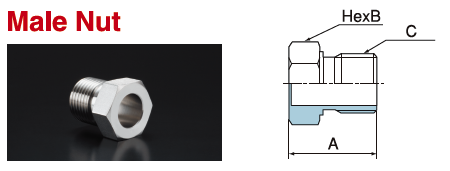

Male Nut

Unit(mm)
Part No. A Hex B C
M0960R 29.00 27.00 0.960-14NGO-RH-EXT
M0960L 0.960-14NGO-LH-EXT
M0803R 24.00 0.803-14UNS-2A-RH-EXT
M0880L 0.880-14NGO-LH-EXT
